12D Stage Roofing Truss System Package with Speaker Wings

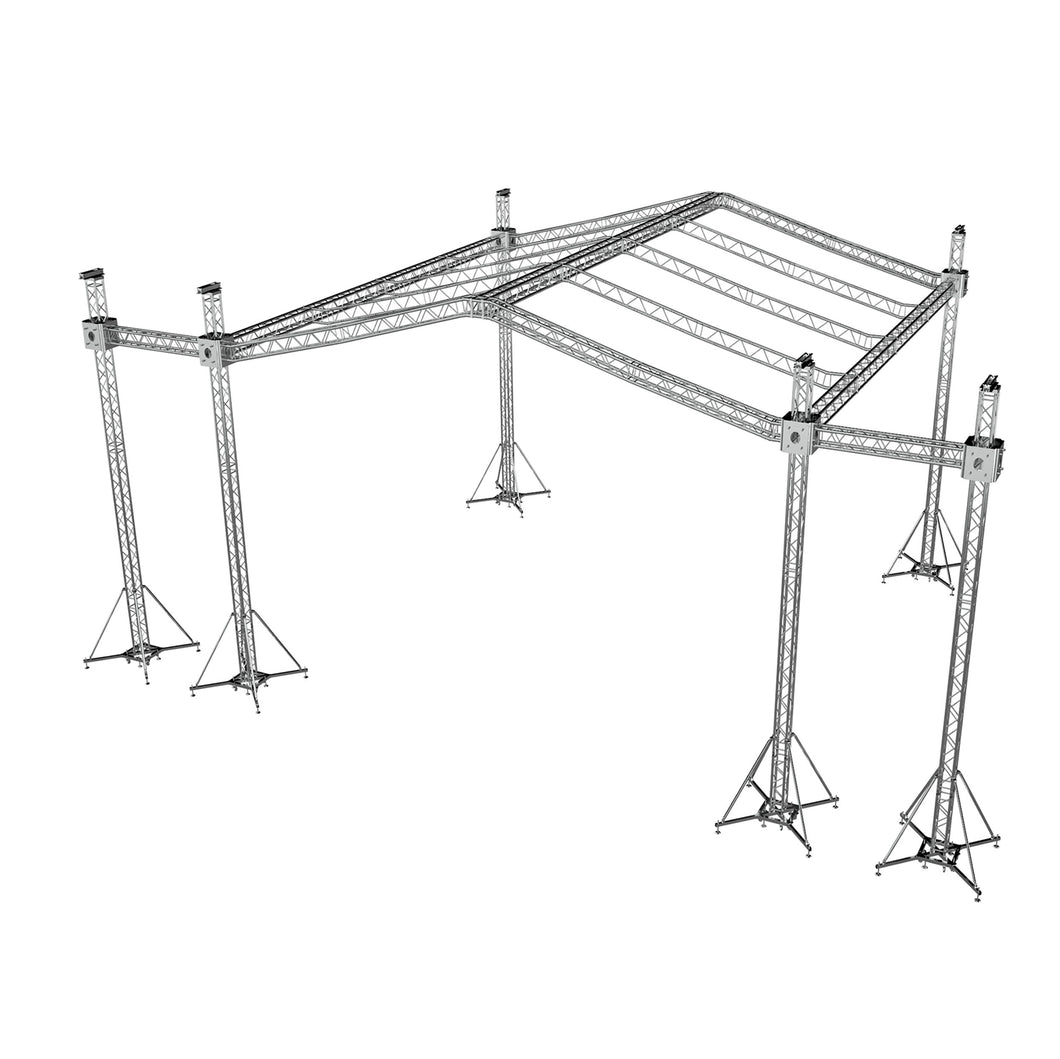

ProX XTP-GS322823-PRB3-12D 12D Stage Roofing System with 7 Ft Speaker Wings and 6 Chain Hoists | 32 Ft W x 28 Ft L x 23 Ft H

Regular price: Sold out
Sale price: $ 39,999.99
Unit price: per

The ProX XTP-GS322823-PRB3-12D Stage Roofing System with Speaker Wings is 30'W x 20'L x 23'H and Includes 6 Chain Hoists. The 30-foot by 20-foot trussing area is large enough to cover a multi-person live band or a very large DJ production set up and the 7 foot wings are more than enough to hang speakers and lighting fixtures. You can hang lighting, curtains, video screens and speakers from the truss system and adjust the height up to 23 feet high. Scalable to smaller staging needs. The entire structure is lifted and held in place with Six (6) chain hoist lifting stations that are the stands that support the entire system. The stage roof trussing is designed to hold lighting and audio gear evenly distributed around the stage roofing system. Guy wires required for most installations!

In this package, you have everything you need for a complete roofing solution:

Package Includes:

ProX XT-SQ series trussing is a rugged and durable trussing package solution. Perfect for live outdoor or indoor productions, exhibitions, as well as nightclubs, and other permanent installations. ProX Live Performance Gear® offers a wide variety of single tubes, mounting plates, clamps and accessories that allow limitless design configurations to suit your needs. Always consult an engineer for complex designs!

ProX XT-SQF34 2MM SERIES DIMENSIONS:

Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9,5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm

IMPORTANT: Always know your load weight for your equipment: XT-SQ Truss Loading Chart

Manufactured to Exacting Specifications in our Own Factory!
Tolerance Free Standard Conical Connectors
Truss Main Tube Wall Thickness of .08in / 2mm
Load Capacity is 1 Ton (2000 lbs) per corner lift unit (4 tons total weight including truss)
Material: EN-AWT6 6082 Aluminum and Welded Steel (Painted Black)
TUV Certified Aluminium/Steel Welding

TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/ and work with many other manufacturers' F34 trussing products with conical connectors.

Package Contents

XT-BLOCK-MK2 (6) Ground Support Sleeve Block for F34 Truss Segment Systems
XT-TOPCM (6) Top Truss Section for Electric Motor or Manual Chain Hoist
XT-GSB MK3 (6) Universal Vertical Tower Truss Ground Support Base on Wheels with Leveling Jacks for F34, F44 and 12" Bolt truss
XT-GSOUTS3 (24) 3 Ft. Outrigger Brace for Ground Support Truss Tower
XT-HINGE (24) Conical Tube Ground Support Post towers Male to Male Hinge Joint Fits F31 F32 F34
XT-SQ328 (6) 3.28 Ft - 1.00 M F34 Square Truss Segment | 2 mm Wall
XT-SQ984 (12) 9.84 Ft - 3.00 M F34 Square Truss Segment | 2 mm Wall
XT-MCH1TX2-30FT (3) Pair 1 Ton Manual Chain Hoist W/30 Ft (9 M) Chain for Stage Truss
XT-SQ820 (4) 8.20 Ft. 2.50 M F34 Square Truss Segment | 2 mm Wall
XT-SQ656 (6) 6.56 Ft - 2.00 M F34 Square Truss Segment | 2 mm Wall
XT-SQ12D (8) 12 Degree F34 Square Truss Angle Connector | 2mm Wall
XT-SQ705 (12) 7.05 Ft - 84.64 Inch - 2.15 M F34 Square Truss Segment 2 mm Wall
XT-JB6W-4W (2) 6 Way Square Truss Junction Block - Includes 4 Way 16 Half Conical Couplers
XT-F32-820 (6) 8.20 Ft 2.5m F32 I-Beam Truss Segment 2mm Wall
XT-F32-656 (6) 6.56 Ft. 2m F32 I-Beam Segment Truss 2mm Wall
XT-F32JBOX (9) F32 6 Way Universal Box Junction | 3mm Wall
XT-F32-12D (12) 12 Degree F32 Truss Corner
XT-SPFF105 (20) Spacer 105mm Female Coupler
XT-CP-103P (18) Truss Junction Box Connector Pack for One Side
